Tehnička specifikacija

SUPPORTED MOBILE CLIENTS
- Android: Android 5.0 and above
- iOS: iOS 9.0 and above
- iPhone:
* iPhone 5s
* iPhone SE
* iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus
* iPhone 7 / iPhone 7 Plus
* iPhone 8 / iPhone 8 Plus
* iPhone X
- iPod Touch:
* iPod Touch 5
* iPod Touch 6

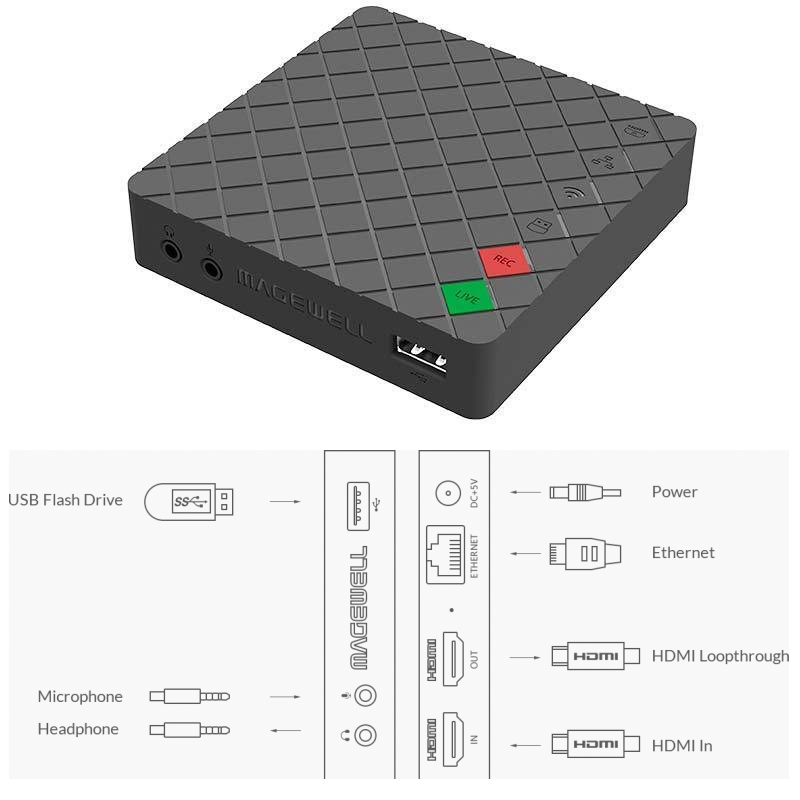

INPUT INTERFACES
- HDMI
* HDMI 1.4a
- 3.5mm audio jack
* Microphone interface

OUTPUT INTERFACES
- HDMI: HDMI loop-through
- USB: USB 2.0
- 3.5mm audio jack: Headphone interface

NETWORK INTERFACES
- Wired Ethernet: 10/100/1000Mbps Ethernet
- Wi-Fi: IEEE 802.11 a/b/g/n/ac

BLUETOOTH
- Bluetooth 4.0 BLE

HDMI SPECIFIC FEATURES
- Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input and loopthrough signals
- Support for 8/10/12-bit color depths
- Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats

ANALOG AUDIO FEATURES
- Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
- Recording and streaming analog audio via 3.5 mm microphone interface

STREAMING FEATURES
- Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server
- Streaming to Facebook, Twitch and YouTube platforms
- Support for streaming to 2 servers simultaneously

RECORDING FEATURES (toUSB FLASH DRIVE)
- Support for H.264 High Profile (video) and AAC High Quality (audio) encoding
- Supports recording at input signal resolution up to 2048x1080
- Support for 1920×1080, 1600×1200, 1440×1080, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1200×900, 1024×768, 960×540, 800×600, 768×576, 720×576, 720×480, 640×480, 640×360, 480×360 resolutions
- Support for 60fps, 50fps, 30fps, 25fps, 24fps, 15fps frame rates
- Support for recording as MP4 files
- USB Flash Drive file system format: FAT32, NTFS, exFAT, VFAT

RECORDING FEATURES (to MOBILE DEVICES)
- Support for recording at up to 1280×720, 30fps
- Support for recording as MP4 files
- Taking still image snapshots during recording
- Save recording files and screenshots to system album
- Input signal previewing
- Timer recording: 15s, 30s, 1min, 2min, 5min

REMOTE CONTROL FEATURES in APP
- Remotely control recording and streaming
- Remotely check device status
- Support for setting volume, network, recording and live streaming parameters
- Support for checking and safely updating device firmware (can also reset to previous firmware version)
- Simultaneous main stream and sub stream encoding with customizable parameters
- The bitrate for main stream is up to 4 Mbps while for sub stream is 1 Mbps
- In-app online help

LED INDICATOR
- Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
- Indicates the working state of the device: startup, recording, streaming, update

FORM FACTOR
- 94.20×94.20×28.50 mm

ACCESSORIES
- AC adapter

POWER SUPPLY AND CONSUMPTION
- Power port: 5V/2A
- Max power consumption: 6.0 W

WORKING ENVIRONMENT
- Operating temperature: 0C to 40 deg C
- Storage temperature: -20C to 70 deg C
- Relative humidity: 5% to 90% non-condensing
