Tehnička specifikacija

SUPPORTED WEB BROWSER (TESTED)
- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above

SUPPORTED SOFTWARE (TESTED)
- OBS
- XSplit
- vMix
- VidBlasterX
- Wirecast
- streamstar SW
- mimoLive
- Any other NewTek NDI-enabled encoding or streaming software

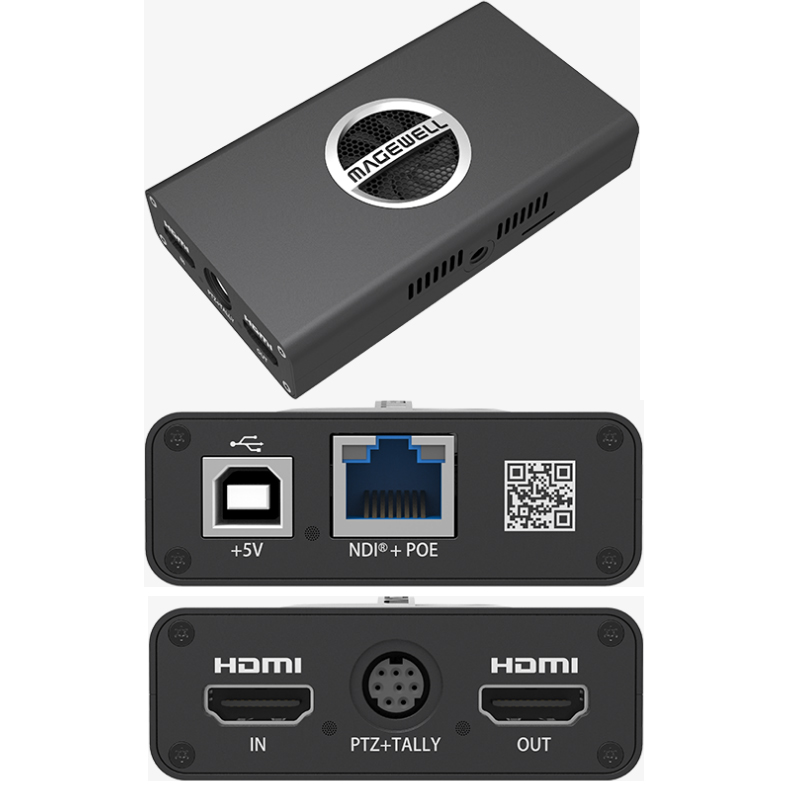

INPUT INTERFACES
- HDMI
* DVI-D 1.0
* HDMI 1.4

LOOP-THROUGH INTERFACE
- HDMI
* DVI-D 1.0
* HDMI 1.4

STORAGE INTERFACE
- SD Card (functions to be developed)

PTZ + TALLY CONTROL
- Mini-DIN–8 jack

SCREW MOUNTING HOLE
- 1/4-20 mounting hole

NETWORK INTERFACES
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE

USB INTERFACE
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM

INPUT FEATURE
- Support for input video resolutions up to 4096×2160

HDMI SPECIFIC FEATURES
- 297MHz HDMI receiver
- Adaptive HDMI equalizer
- Support for customized EDID
- Support for extraction of AVI/Audio InfoFrames
- Full colorimetry support
- Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input signals
- Support for 8 channel IEC60958 audio streams
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

NDI OUTPUT FORMAT
- Support for 4:2:2 8-bit output
- Support for up to 2048×2160 120fps
- Support for NDI 3.x

VIDEO PROCESSING FEATURES
- Video processing pipelines with 160 Mpixels/s
- Video brightness, contrast, saturation, hue adjustment
- Video de-interlacing
* Top field only
* Bottom field only
- Video aspect ratio conversion
* Auto or manual selection of output aspect ratio
- Video color format conversion
* Auto or manual selection of input color format & quantization range
* Auto or manual selection of output color format, quantization range & saturation range
* Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
* Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
* Support for Limited or Full quantization range
* Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
- Video mirror flip

NDI SOURCE NAME
- Support for setting the device name shown in the system using Web UI
* By default, the device name is "Pro Convert"
- Support for setting the source name shown in the system using Web UI
* By default, the source name is "board-index + serial number"
- Support for setting board-index, from 0 to F, through on-board rotary switch

FIRMWARE UPGRADE
- Support for manual update using Web UI

LED INDICATOR
- Status LEDs indicate:
* the state of power supply: on/off
* Tally: preview/program
* the state of input signal: locked/unlocked
* the state of loopthrough signal: loopthrough connected and signal detected/undetected

FORM FACTOR
- 117.5(L) × 66.7(W) × 23.4(H) mm

ACCESSORIES
- USB 2.0 A to B Cable
- 5V/2.1A power adaptor
- Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
- L-bracket
- LED matrix panel (optional)

POWER CONSUMPTION
- 5V max current: 1.5A
- Max power consumption: 8W

WORKINH ENVIRONMENT
-Operating temperature: 0C to 45 deg C
- Storage temperature: -20C to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
